Baseus charger GaN2 Pro 2x USB Type-C / 2x USB 100W

This is a multi-functional charger which allows supporting even very powerful devices, for example laptops. It supports modern quick charge standards, such as Power Delivery, Huawei FCP 5A and Quick Charge 3.0, and assures data transmission of 480Mbs. This product has a big potential, is equipped with three ports and protection against overheating or short-circuit.

Charger specification:

• Brand: Baseus
• Size: 92 mm x 85,2 mm x 30,5 mm
• Weight: 220g
• Input voltage: AC 100-240V, 50/60Hz, 3,0A Max
• Output voltage:
• Type-C1/Type-C2:
  • 5V/3A (15 W)
  • 9V/3A (27 W)
  • 12V/3A (36 W)
  • 15V/3A (45 W)
  • 20V/5A (100 W)
• USB1/USB2:
  • 5V/3A (15 W)
  • 9V/3A (27 W)
  • 12V/3A (36 W)
  • 20V/3A Max (60 W)
• • Type-C1+Type-C2: 65 W+30 W/65 W+30 W
  • USB1+USB2: 5V/3A (15 W)
  • Type-C1/Type-C2+USB1/USB2: 65 W+30 W
  • Type-C1+Type-C2+USB1/USB2: 60 W+20 W+15 W
• Quality certificate: RoHS, CE, FCC, CCC

Major features:

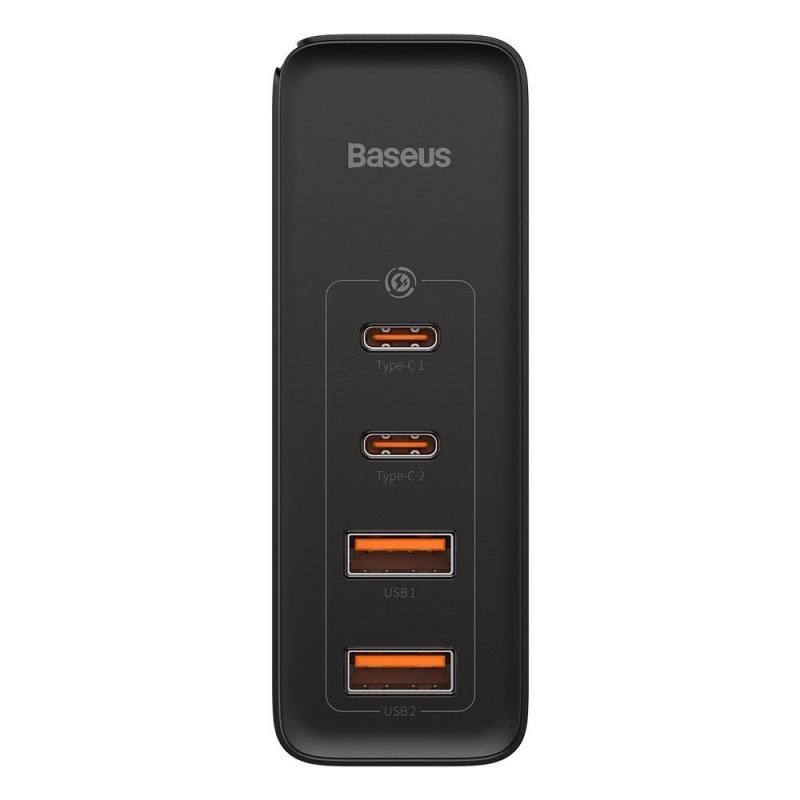

• As many as four charging ports: USB Type-C1, Type C2, USB1, USB2
• Big power allows supporting phones, tablets and laptops
• Light and slender structure, small weight
• Fast charging pace
• High protection against short-circuit, overloading, overcharging.

 Quick charge technologies supported

The charger supports the following quick charge technologies: Quick Charge 4.0 / 3.0, Power Delivery 3.0, Huawei Super Charge, FCP AFC, MTK. It means that batteries in Samsung phone can reach 60% in 30 minutes. It is compatible with iPhone 11, HuaweiMate30, Samsung S20, XiaomiMi10, Apple tablets and laptops.

Newest technologies – BPS II (charging), BCT (cooling)

The innovative cooling technology (BCT) and quick charging (BPS II) are functions provided to charger users by the manufacturer. Although charging power is very big, and time limited to the minimum, there is no overheating or damage risk.

Top protection

Baseus has implemented as many as 6 various protection units whose aim is to provide the following kinds of protection to the charger and device in question:

• electrostatic,
• against overheating,
• against over-voltage,
• against overloading,
• against short-circuit,
• against consumption of excessive power.

Gallium nitride – innovative material with good parameters

The use of gallium nitride will lead to reduction of charger size and increase in its power. It is lighter, smaller and narrower – easy to take wherever you go. A semi-conductor properly conducts heat, is resistant to damage, radiation and mechanical impact.
